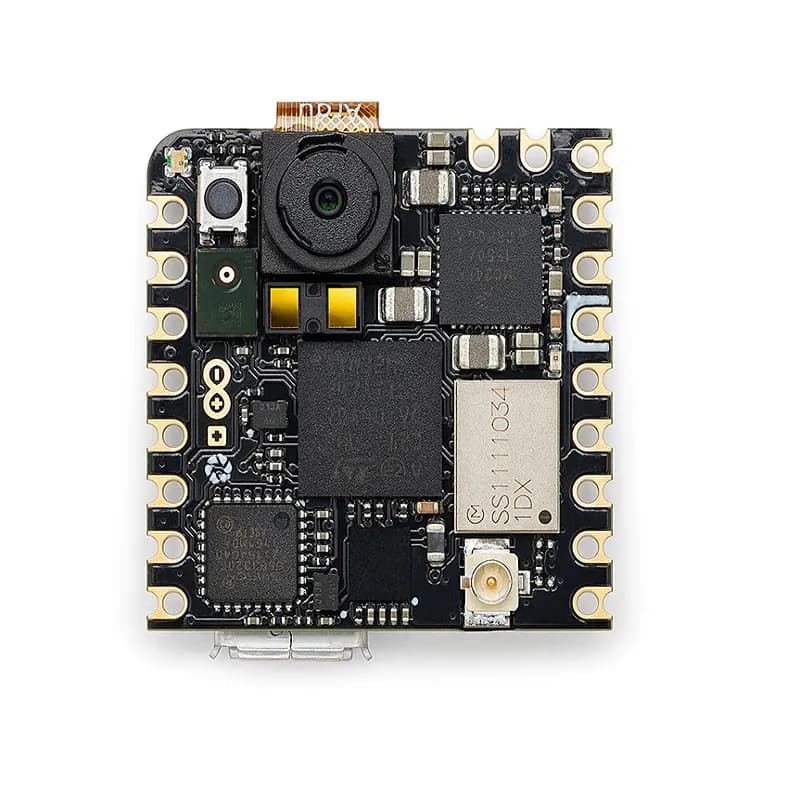

| Item Type: | Dev. Board |
| Model Type | Nicla |
| Model No.: | ABX00051 |
| Microcontroller | STM32 |
| Microcontroller Chip | core up to 480 Mhz + M4 core up to 240 Mhz, STMicroelectronics STM32H747AII6 Dual ARM® Cortex® – M7 |
| Sensor | 2 MP Color Camera, 6-Axis IMU (LSM6DSOX), Distance, Time Of Flight sensor (VL53L1CBV0FY/1), Microphone (MP34DT05) |
| I/O Ports | (with ESLOV connector), 1x serial port; 1x SPI;, 2x ADC Programmable I/O voltage from 1.8-3.3V, Castellated pins with the following features: 1x I2C bus, JTAG, Power and GPIO pin headers |
| Security | NXP® SE050C2 Crypto chip |
| Operating Power | High speed USB (500mbps); Pin Header; 3.7V Li-po battery, with Integrated battery charger and fuel gauge (MAX17262REWL) |
| Connectivity | (Murata® 1DX – LBEE5KL1DX-883), Wi-Fi / Bluetooth® Low Energy 4.2 |
| Memory: | 2MB Flash / 1MB RAM; 16MB QSPI Flash for storage |
| Interface | USB interface with debug functionality |
| Operating Temperature (°C) | -20° C to +70° C (-4° F to 158°F) |
| Dimensions (L x W x H) mm | 22.86 mm x 22.86 mm |
