| Model Series: | L298N Series |
| Voltage Rating (V): | 3 to 30VDC |

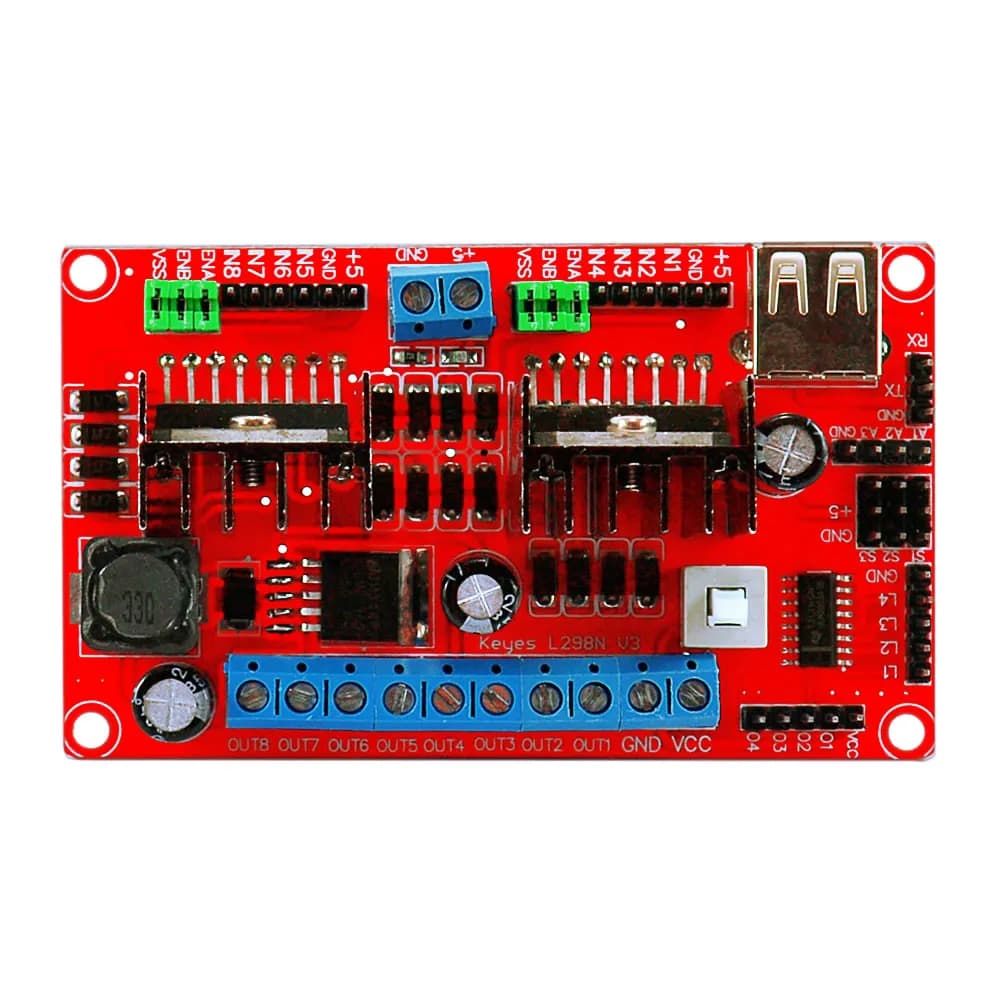

| Driver IC | L298N dual H-bridge DC motor driver chip |
| Max. Current (A) | 2 |
| Input Voltage (VDC) | + 5V~+ 30V (the range is + 6V~+30V if taking Internal power) |
| Logic Current (mA) | 0 ~ 36mA |
| Control Signal Voltage (V) | -0.3V≤Vin≤1.5V (Low Level), 2.3V≤Vin≤Vss (High Level) |
| Enable Signal Voltage (V) | -0.3≤Vin≤1.5V (control signal is invalid) (ENA ENB) Low level, 2.3V≤Vin≤Vss (control signal is active) (ENA ENB) High level |
| Power Consumption (W) | 20W (when the temperature T = 75 °c) |
| Storage Temperature (°C): | -25 °c ~ + 130 °c |
| Length (mm): | 90 |
| Width (mm): | 54 |
| Height (mm): | 25 |
| Weight (g): | 67 |
