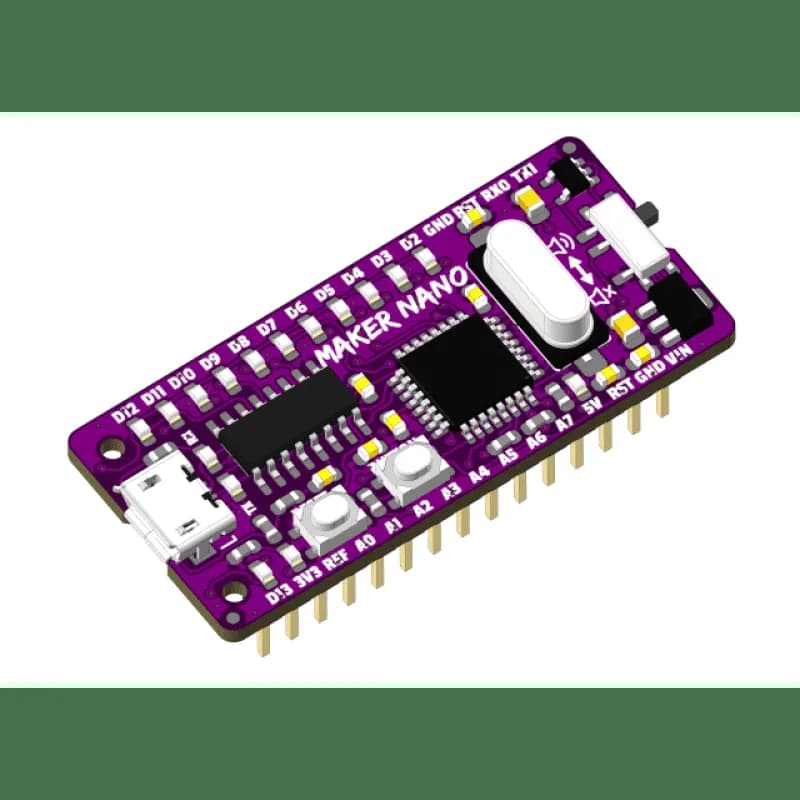

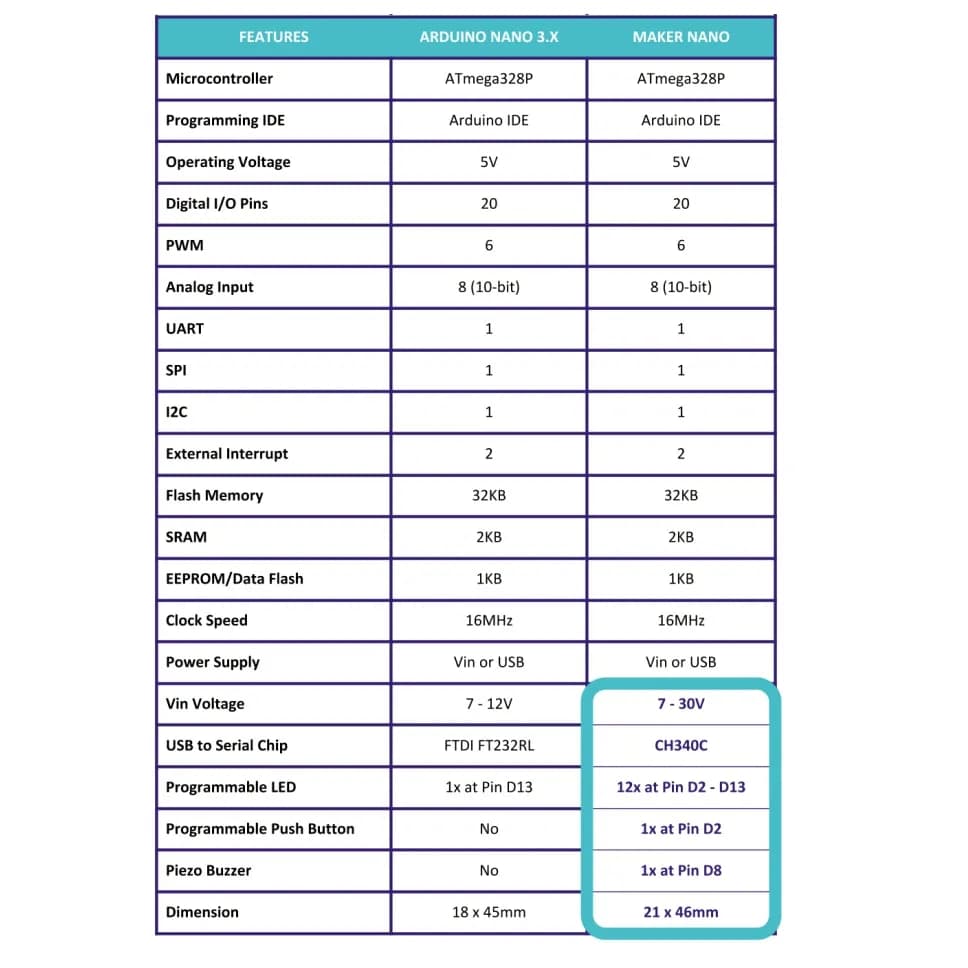

| Item Type: | Controller/Development Board |
| Model Series: | Maker Series |
| Voltage Rating (V): | 7 to 30 |
| Microcontroller | ATmega328P |
| Programming IDE | Arduino IDE |
| Operating Voltage (VDC) | 5V |

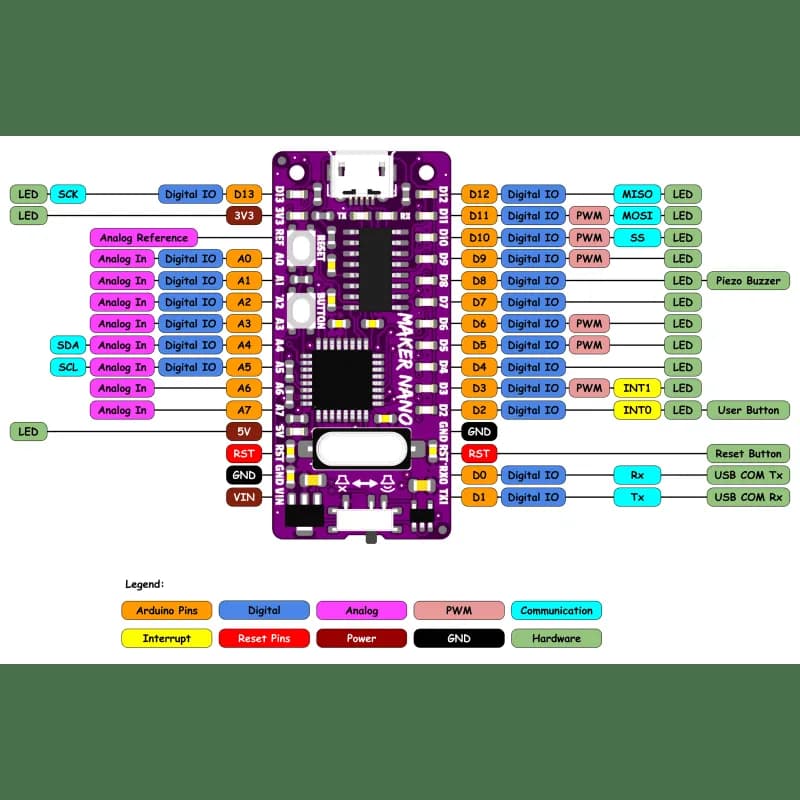

| Digital I/O Pins | 20 |
| PWM | 6 |
| Analog Input | 8 (10-bit) |
| UART | 1 |
| SPI | 1 |
| I2C: | 1 |
| External Interrupt: | 2 |
| Flash Memory: | 32 KB |
| SRAM | 2 KB |
| EPROM/Data Flash | 1 KB |
| Clock Speed | 16 MHz |
| Power Supply | Vin or USB |
| Input Voltage (V) | 7 to 30 |
| USB to serial chip | CH340C |

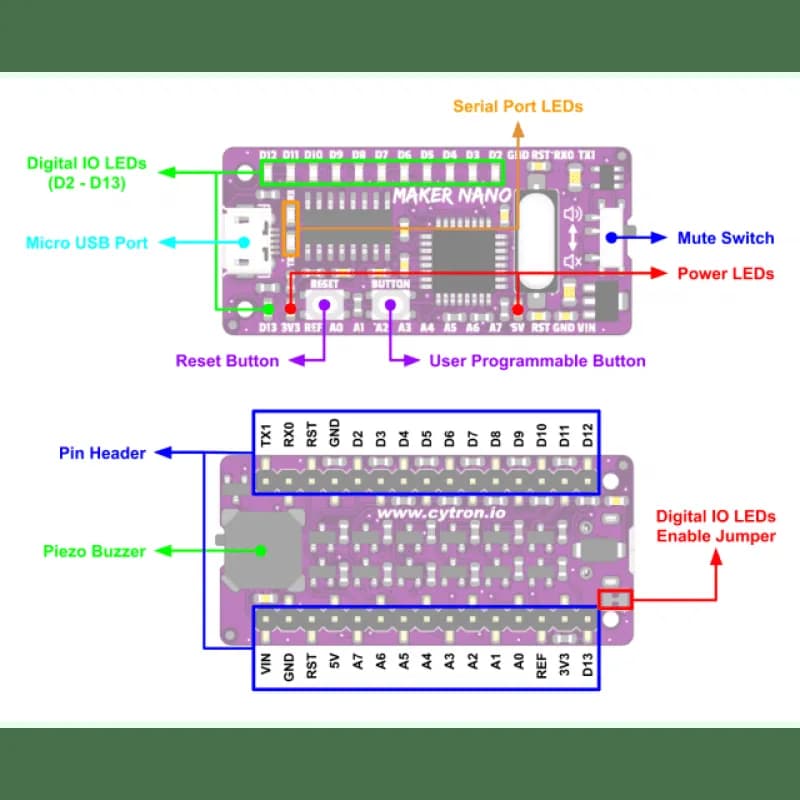

| Programmable LED | 12 x pi D2-D13 |
| Programmable Push Button | 1 x at pin D2 |
| Piezo Buzzer | 1 x at Pin D8 |

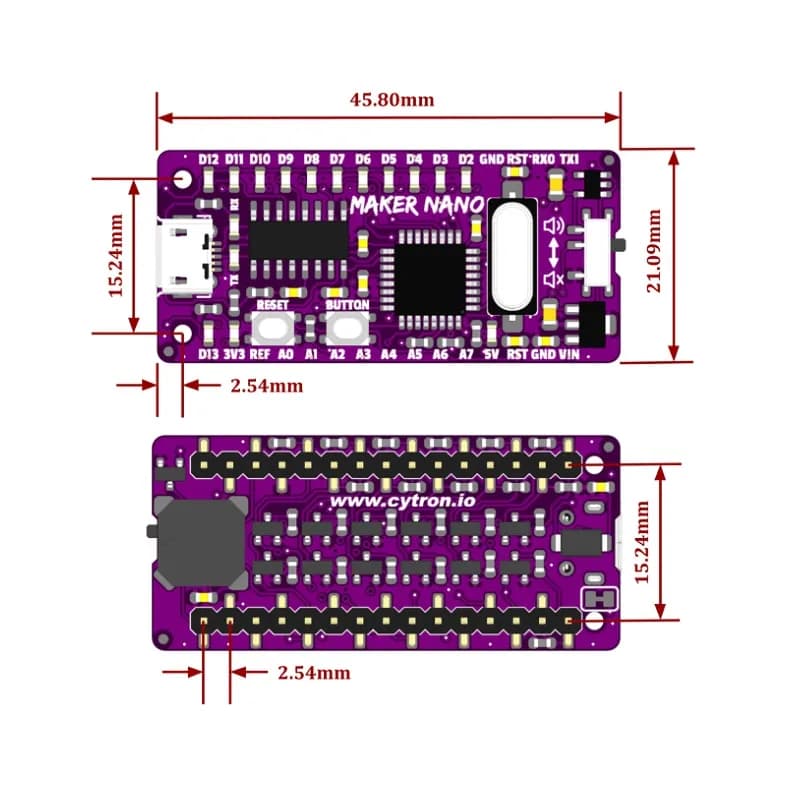

| Dimensions (L x W x H) mm | 21 x 46 |
| Weight (g): | 8 |
