      Mini Oscilloscope DS213

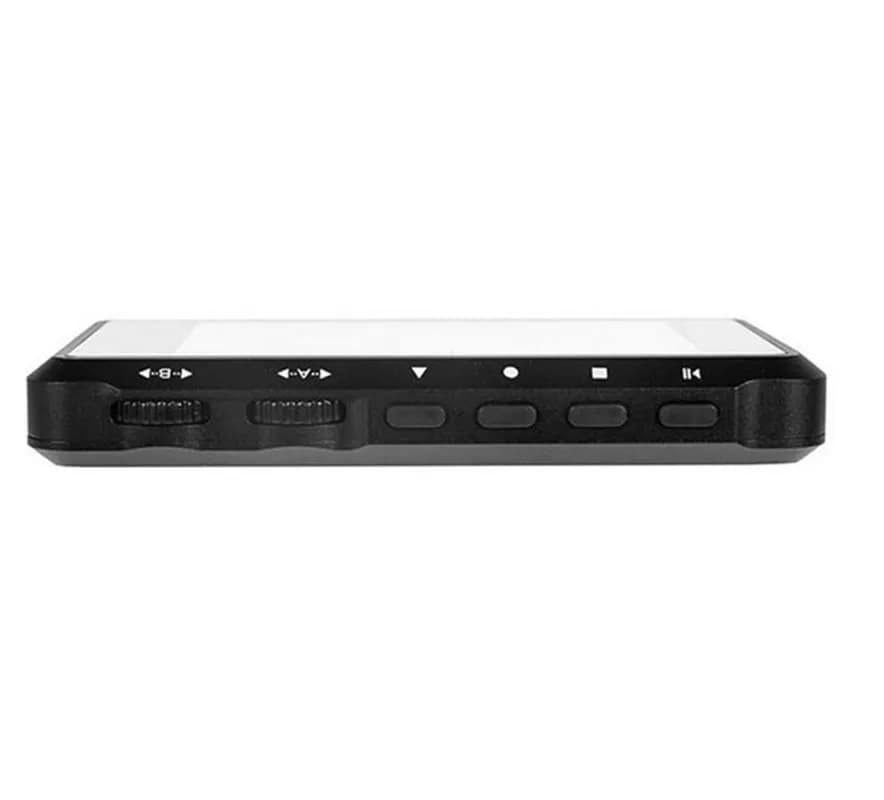

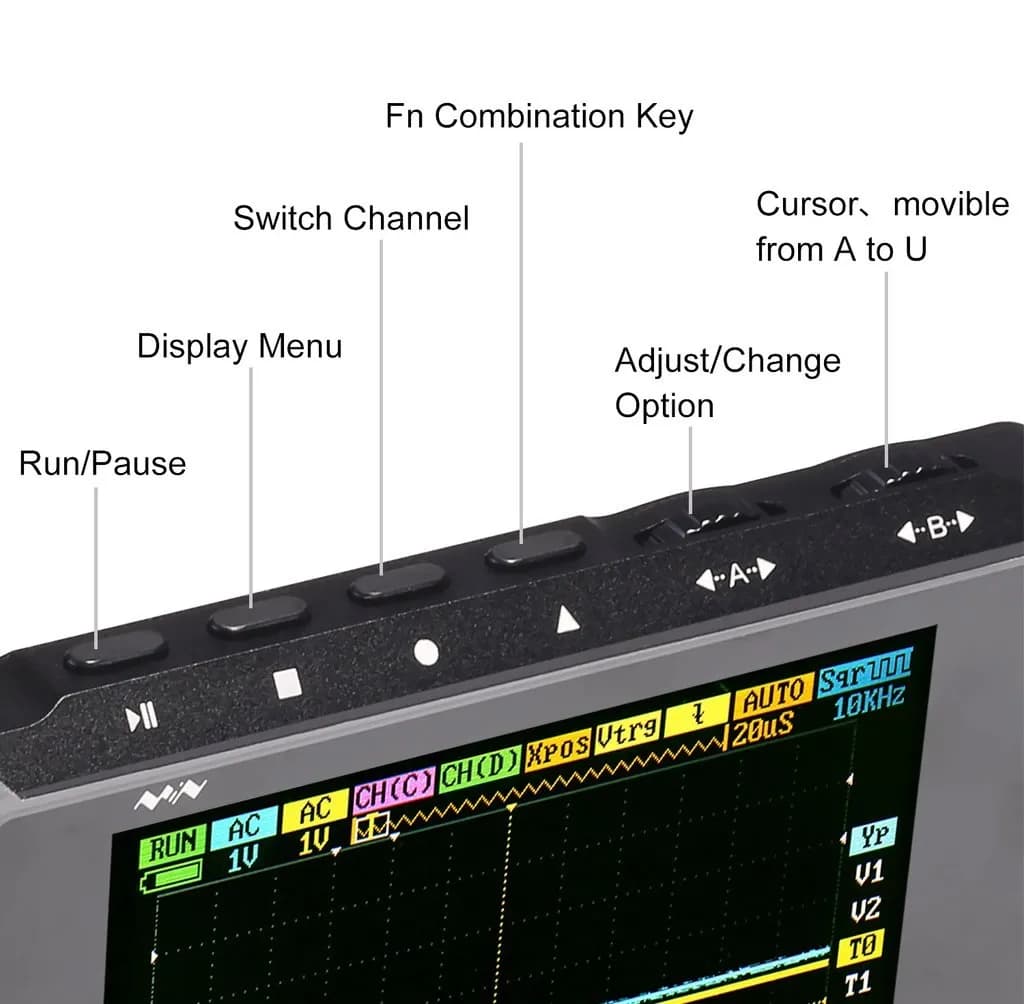

      Mini Oscilloscope DS213 - Gallery Image 1

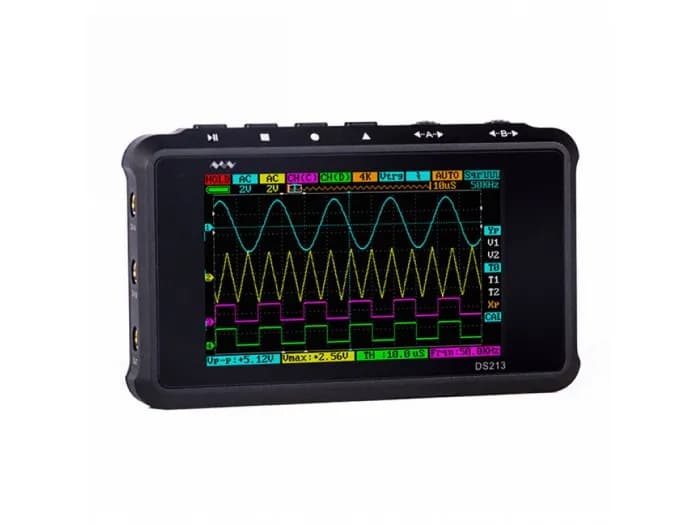

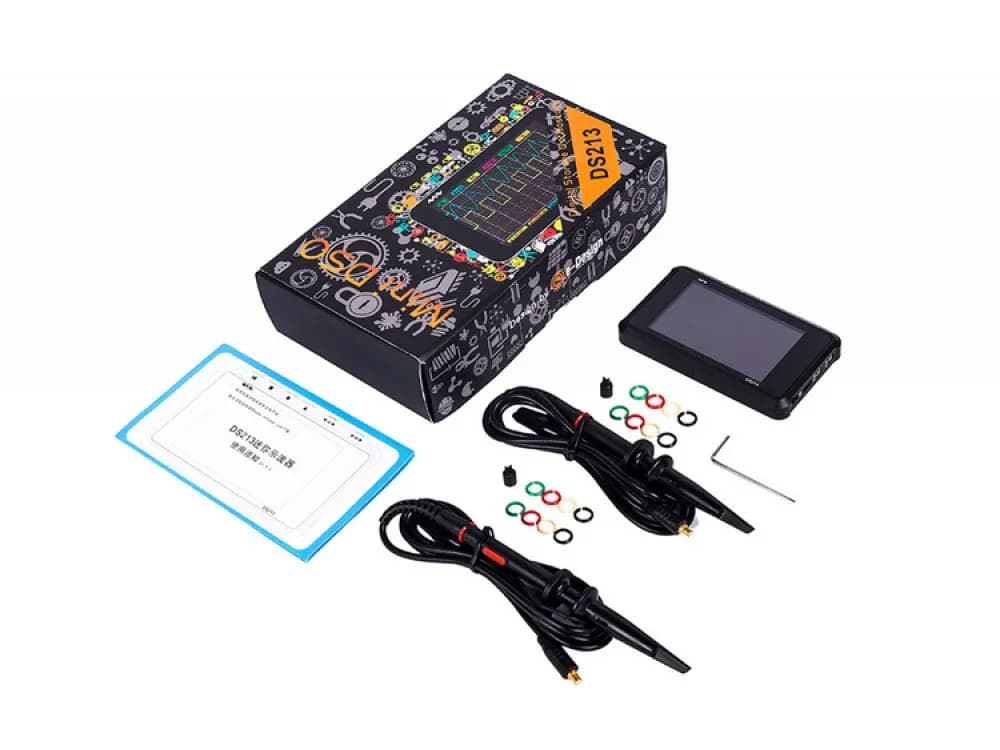

      Mini Oscilloscope DS213 - Gallery Image 2

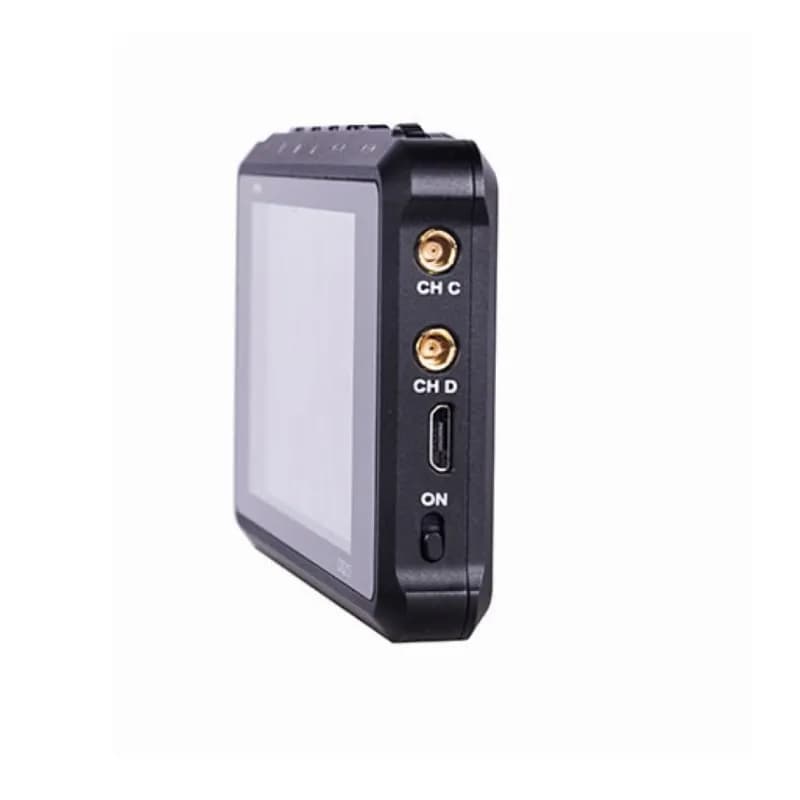

      Mini Oscilloscope DS213 - Gallery Image 3
      Mini Oscilloscope DS213 - Gallery Image 4

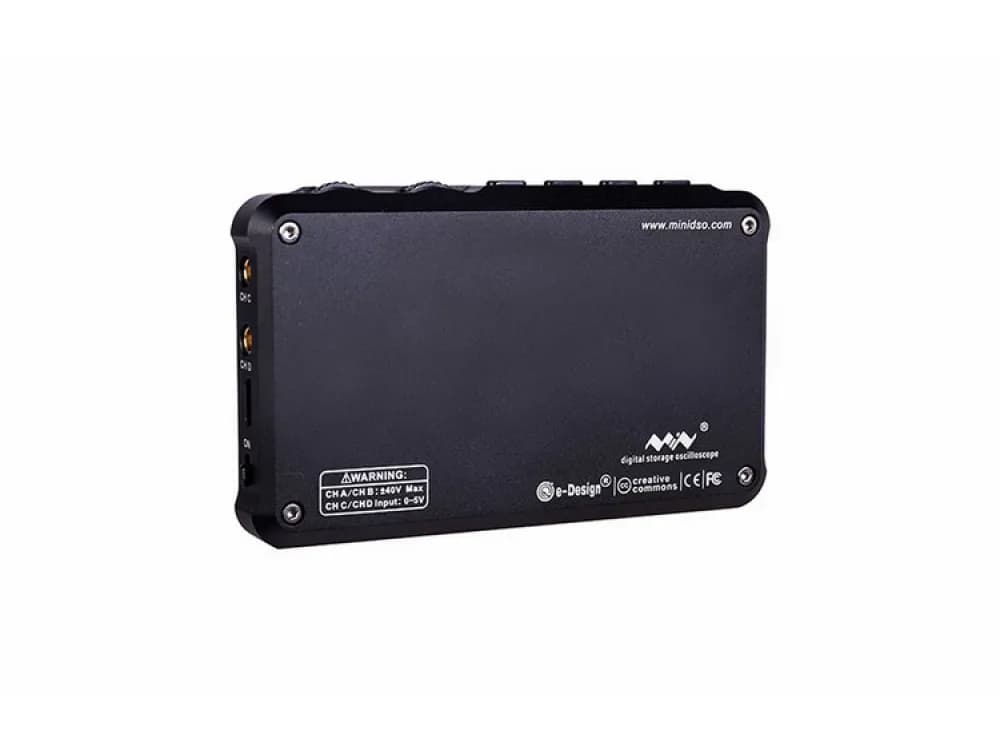

      Mini Oscilloscope DS213 - Gallery Image 5

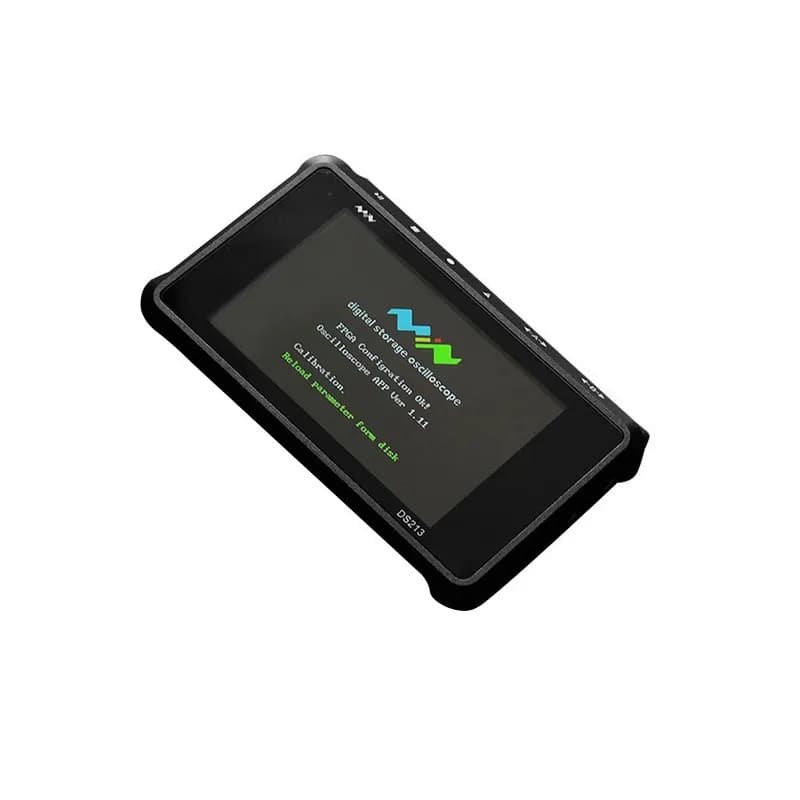

      Mini Oscilloscope DS213 - Gallery Image 6

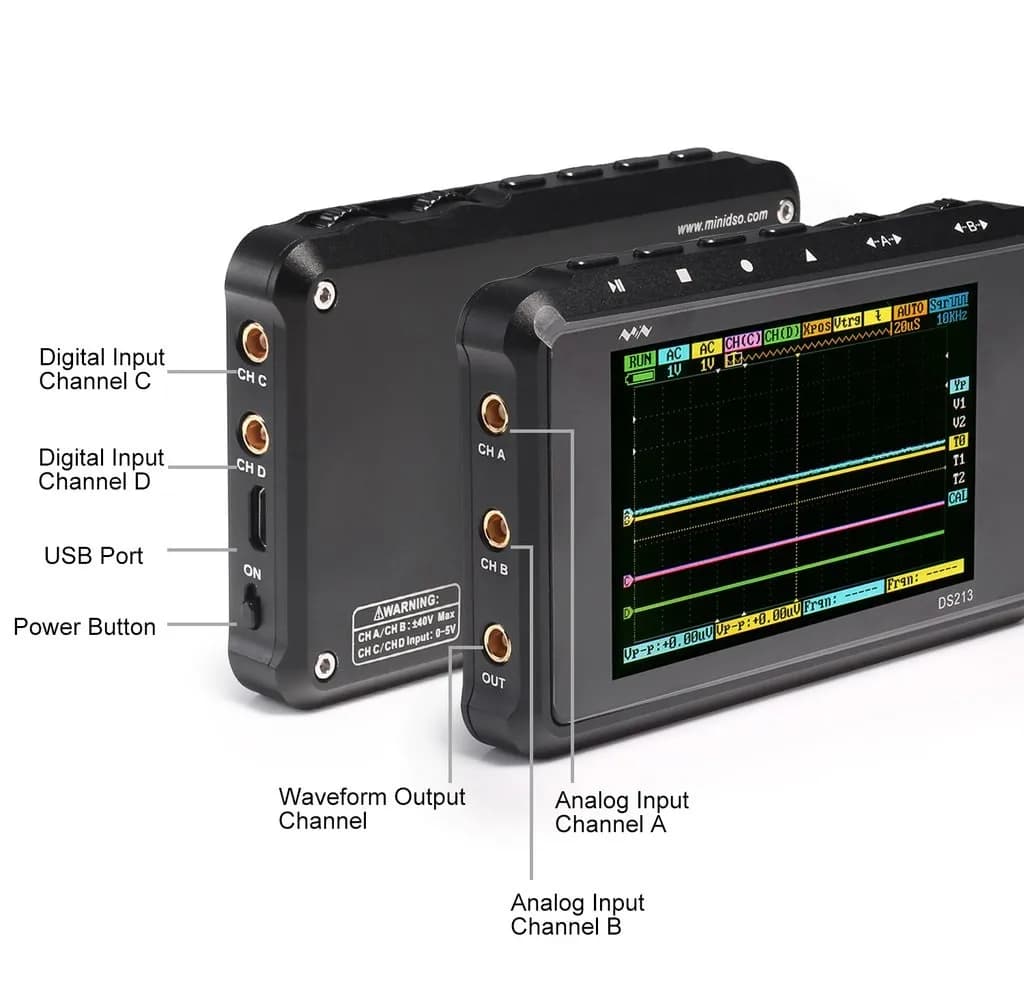

      Mini Oscilloscope DS213 - Gallery Image 7

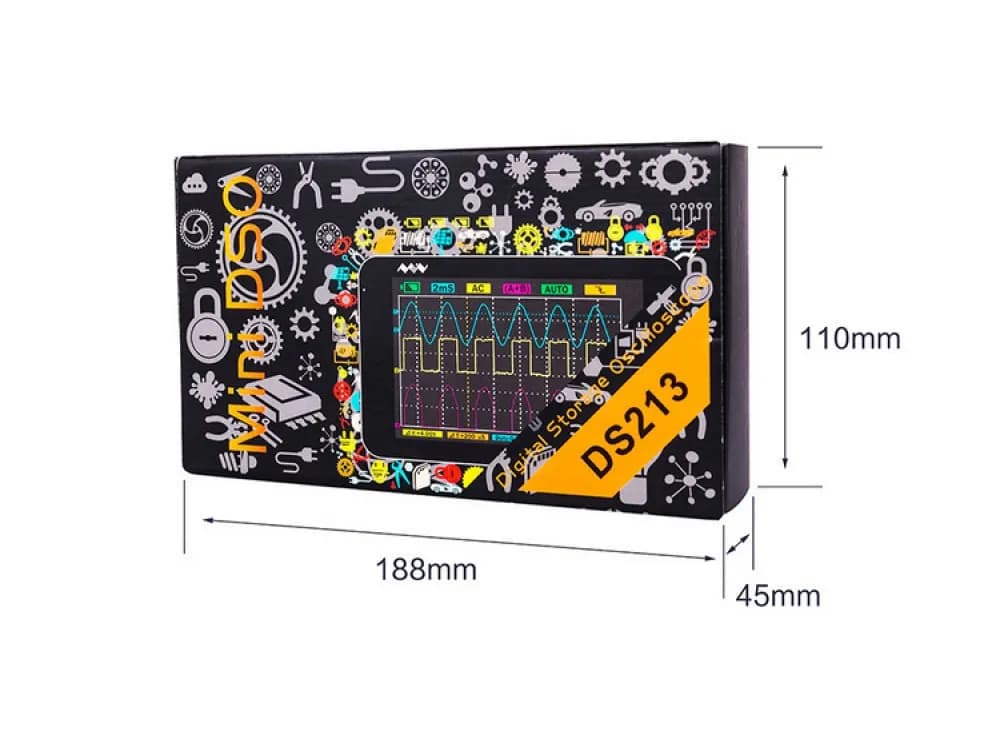

      Mini Oscilloscope DS213 - Gallery Image 8
      Mini Oscilloscope DS213 - Gallery Image 9
      Mini Oscilloscope DS213 - Gallery Image 10
      Mini Oscilloscope DS213 - Gallery Image 11

      Mini Oscilloscope DS213

      Visit the GENERICStore | SKU: 9991184
      In Stock

      Lowest Price

      Sale Price
      ₹18,732.00 (Incl. of all taxes)
      MRP: ₹31,039.00
      Save: 12,307.00 (40%)
      Minimum Order Quantity: 1
      In Stock
      Pincode Checker

      Check Delivery Availability

      Offers and Discounts

      Save Instantly Extra ₹50 with Online Payment.

      via UPI, EMI, Credit/Debit Card, Net Banking, Wallets on min. cart value of ₹3000

      Get a 2' Instant Discount on Payments via UPI or Bank Transfer!

      Enjoy a 2' instant discount when you pay using UPI or bank transfer.

      Partial COD Available! Pay 25' in Advance and Settle the Rest on Delivery.

      Pay 25' upfront and the rest on delivery for a hassle-free shopping experience!

      EMIs available on purchases of ₹3000 or more across all banks!

      Get a GST invoice and save up to 18' on your business purchases!

      GST Invoice Available
      Secure Payments
      365 Days Help Desk

      Return & Warranty Policy

      6 Months Warranty Warranty
      Missing Product
      Wrong Product
      Damaged Product
      Defective Product
      Item Type:Oscilloscope
      No. of Channels:2
      Model No.:DS213
      CPUARM Cortex M3

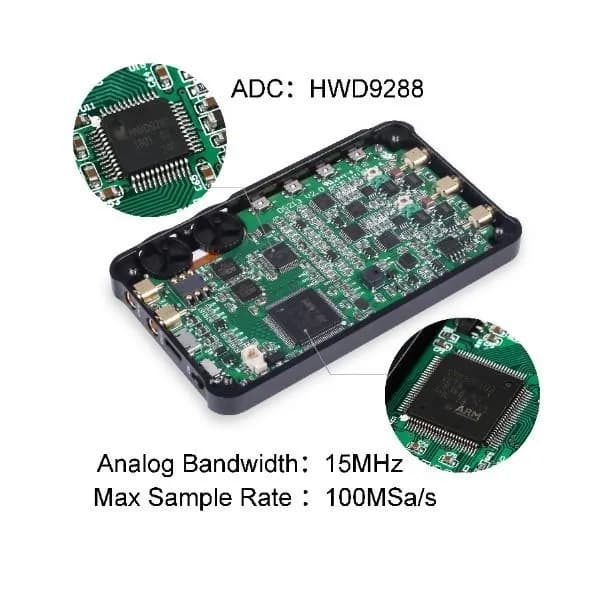

      ADC / DACHWD9288-100
      Vertical Resolution8 bits
      Coupling TypeDC, AC
      Sampling Rate (MAX)100M Sa/s
      Battery1000mAh

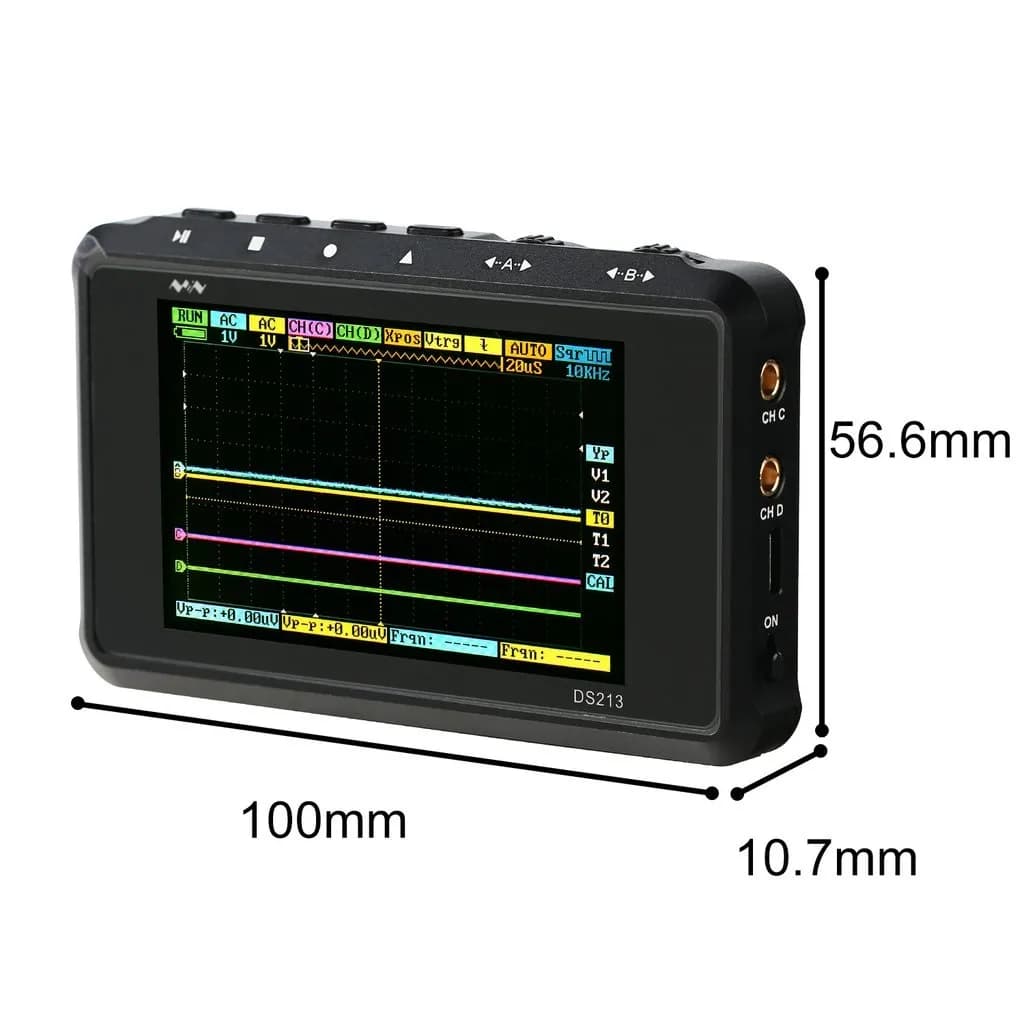

      Dimensions (LxWxH) mm99.5 x 58.5 x 13.5
      Trigger TypeEdge trigger, Pulse width trigger
      Trigger ModesAuto,Normal,Single,Slow
      DisplayColor TFT LCD display (resolution 240×400)
      StorageBuilt-in U disk storage capacity of 8MB, can store waveform data and waveform images
      Additional Specs.Analog channel input sensitivity range: 10mV/Div-10V/Div(1-2-5 Step), Digital channel maximum input voltage: 5V, Digital channel standard input impedance: 100KΩ

      Available Downloads

        Datasheet
