| Item Type: | Other IoT Boards |
| CPU | big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz) |
| GPU | Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC |
| NPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| DDR3 RAM | 4GB LPDDR4 |
| Storage | No Onboard eMMC |

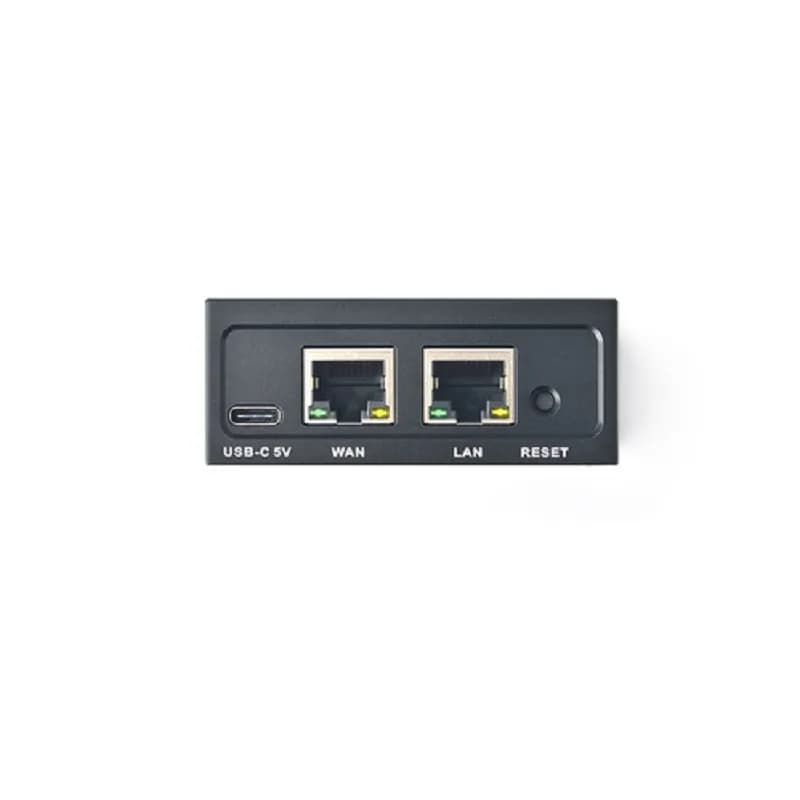

| Network | One Native Gigabit Ethernet, and one PCIe Gigabit Ethernet |
| PMU Power Management | RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode |

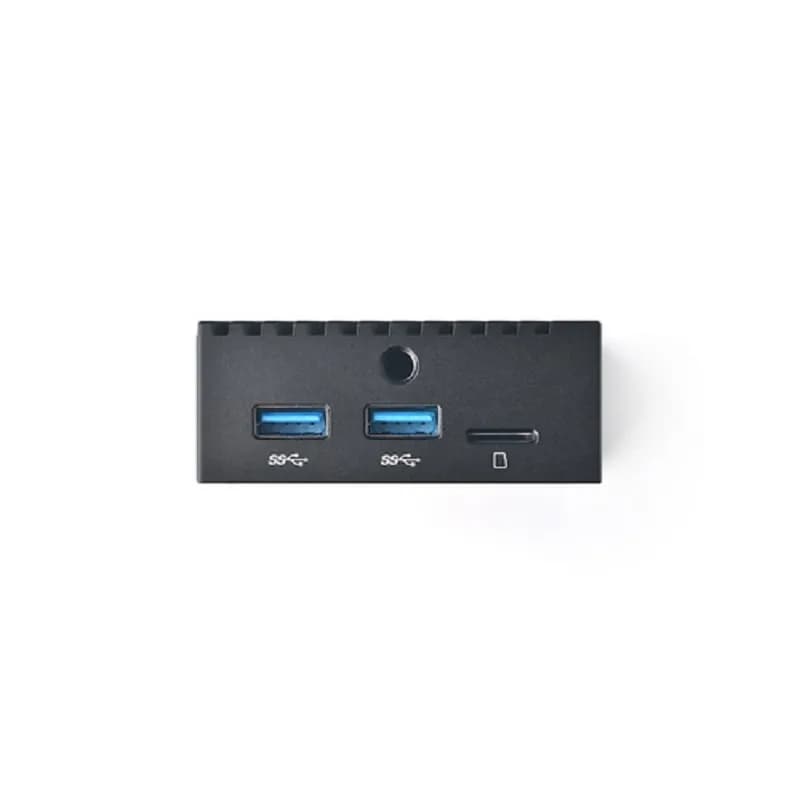

| USB Host | Two USB 3.0 Type-A ports |
| Debug Serial Port/UART0 | One Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps |
| Micro SD Card Slot (Y/N): | 1 |
| GPIO | 2×5-pin header: SPI x 1, I2C x 1 |
| 4-pin header | USB 2.0 |
| LED | 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN) |
| PCB Dimensions | 8 Layer, 66 mm x 66 mm |
| Power | DC 5V/3A, via USB-C connector or Pin header |
| Operating Temperature (°C) | -20°C to 70°C |
