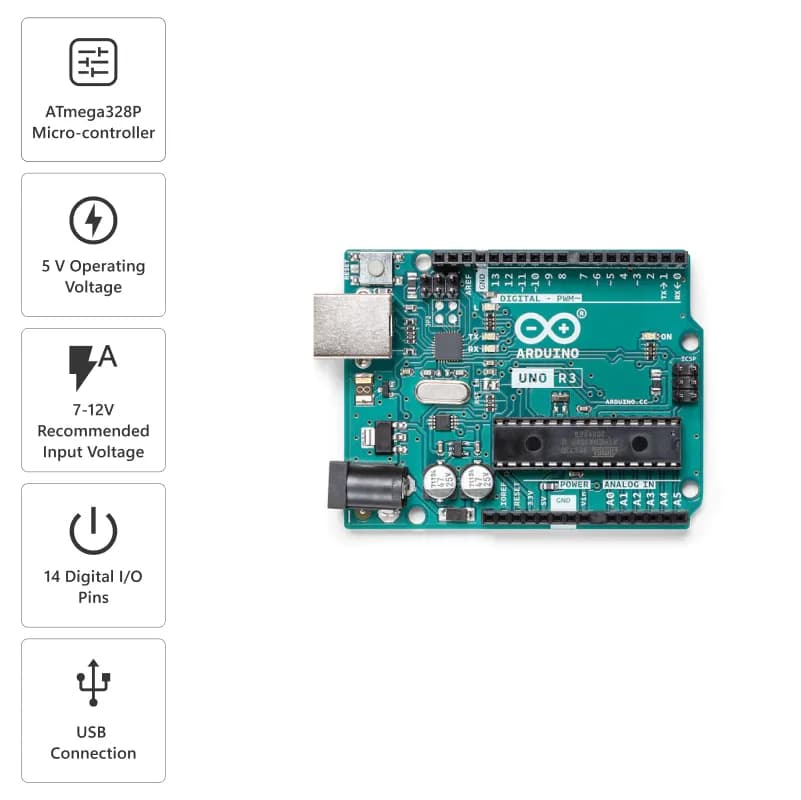

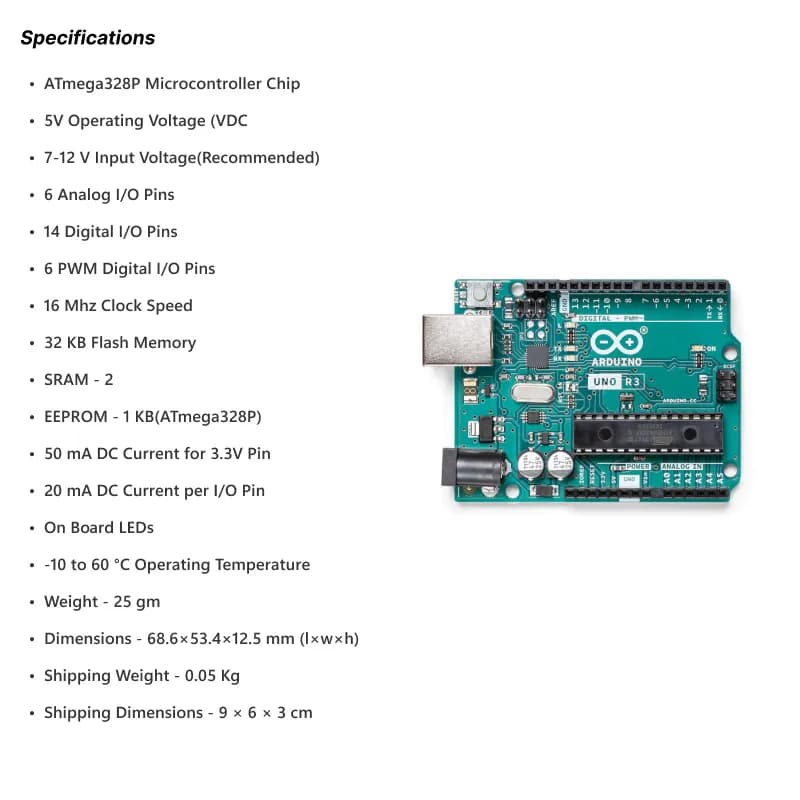

| Item Type: | Dev. Board |
| Model Type | Uno |
| Model No.: | A000066 |
| Microcontroller | Atmega |
| Operating Voltage (VDC) | 5 |
| Input Voltage (V) | 7-12V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Clock Speed | 16 MHz |
| Flash Memory: | 32 KB |
| SRAM | 2 |
| EEPROM | 1 KB (ATmega328P) |
| DC Current for 3.3V Pin(mA) | 50 |
| DC Current per I/O Pin (mA) | 20 mA |
| On Board LED | Yes |
| Operating Temperature (°C) | -10 to 60 |
| Weight (g): | 25 |
| Length (mm): | 68.6 |
| Width (mm): | 53.4 |
| Height (mm): | 12.5 |
