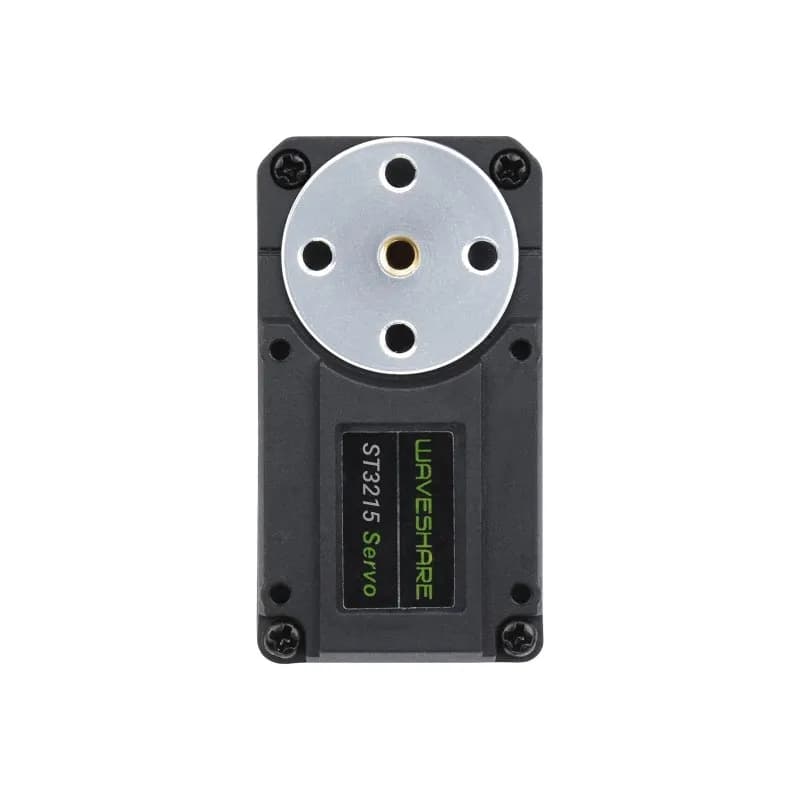

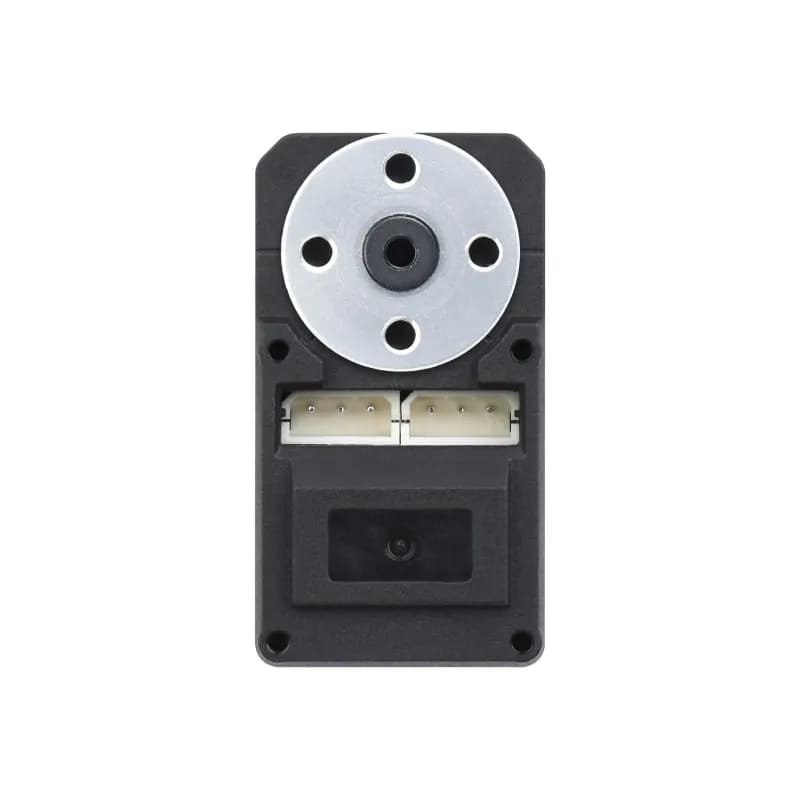

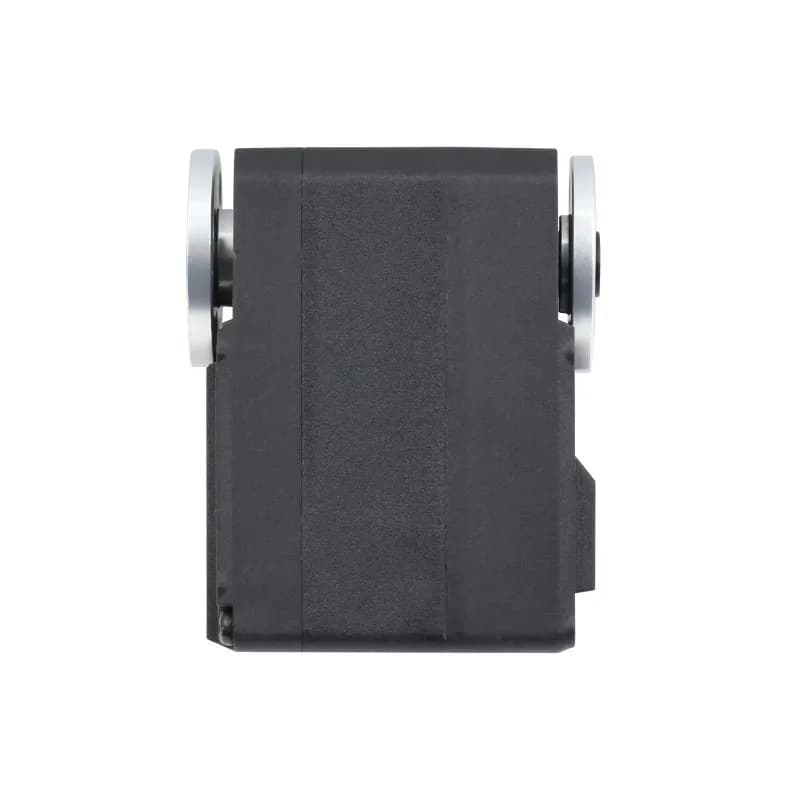

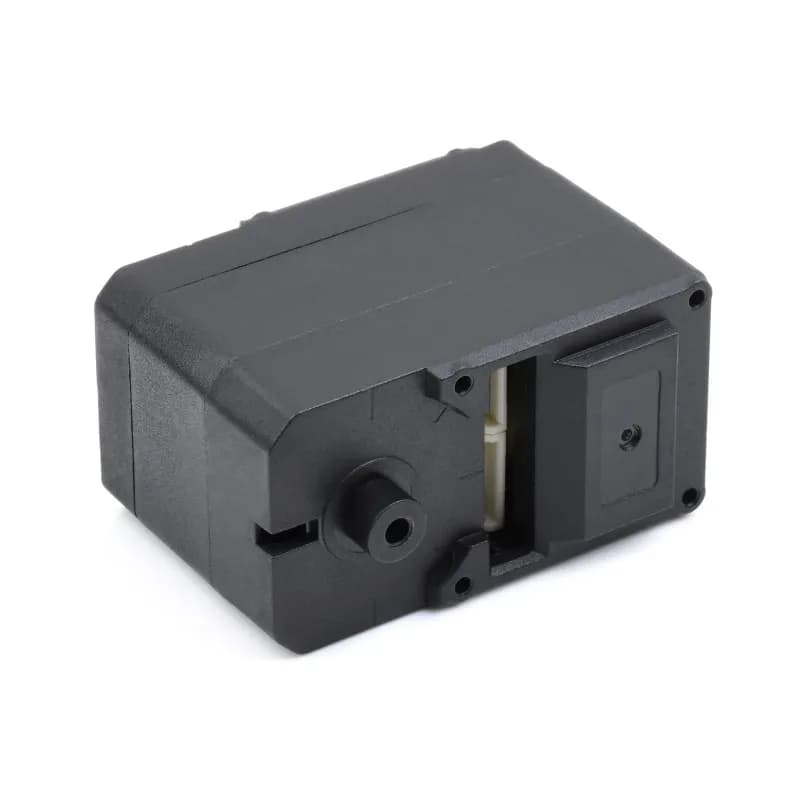

| Item Type: | Waveshare Servo Motor |
| Rotation (Degree): | 360 |
| Torque Rating (kg-cm): | 30 |
| Operating Voltage (VDC) | 6 – 12.6 V |
| Rated Torque (kg-cm): | 30kg.cm @12V |
| Rotation angle | 360° (0-4095) |
| Position sensor resolution | 360° / 4096 |
| Mechanism limit angle | No Limit |
| Gear Type | high precision metal gear |
| Speed | 0.222sec / 60° (45RPM)@12V |
| Encoder Type | 360° Magnetic Encoder |
| ID range | 0 – 253 |
| Baud Rate | 38400 bps – 1 Mbps (1Mbps by default) |
| Feedback | Position, Load, Speed, Input Voltage |
| No Load Current (mA) | 180 mA |
| Locked-rotor current | 2.7A |
| Torque Constant KT | 11kg.cm/A |
