ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder

ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder - Gallery Image 1

ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder - Gallery Image 2

ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder

Name: ZSP3806 2500 PPR Solid Shaft ABZ 3-Phase 5-24V Incremental Photoelectric Rotary Encoder
Brand: GENERIC
SKU: 8137040
Price: 6171 INR
Availability: OutOfStock

Visit the GENERICStore | SKU: 8137040

Out of Stock

Lowest Price

Sale Price

₹6,171.00 (Incl. of all taxes)

MRP: ₹8,915.71

Save: 2,744.71 (31%)

Minimum Order Quantity: 1

In Stock

Check Delivery Availability

Offers and Discounts

Save Instantly Extra ₹50 with Online Payment.

via UPI, EMI, Credit/Debit Card, Net Banking, Wallets on min. cart value of ₹3000

Get a 2' Instant Discount on Payments via UPI or Bank Transfer!

Enjoy a 2' instant discount when you pay using UPI or bank transfer.

Partial COD Available! Pay 25' in Advance and Settle the Rest on Delivery.

Pay 25' upfront and the rest on delivery for a hassle-free shopping experience!

EMIs available on purchases of ₹3000 or more across all banks!

Get a GST invoice and save up to 18' on your business purchases!

GST Invoice Available

Secure Payments

365 Days Help Desk

Return & Warranty Policy

15 Days Warranty Warranty

Missing Product

Wrong Product

Damaged Product

Defective Product

Model Type	Rotary Encoder
Rated Speed (RPM):	3000
Pulse Per Revolution (PPR)	2500
Operating Voltage (VDC)	5 to 24
Model No.:	ZSP3806
Encoder Type	Incremental
Current Consumption (mA):	≤40
Counts Per Revolution (CPR)	10000
Operating Temperature (°C)	-24 to 84
Output Phase	A-B-Z
Protection Standard	IP52
Shaft Type	D Type, Solid
Shaft Length (mm):	13
Shaft Diameter (mm):	6
Mounting Hole (mm)	M3
Weight (g):	160

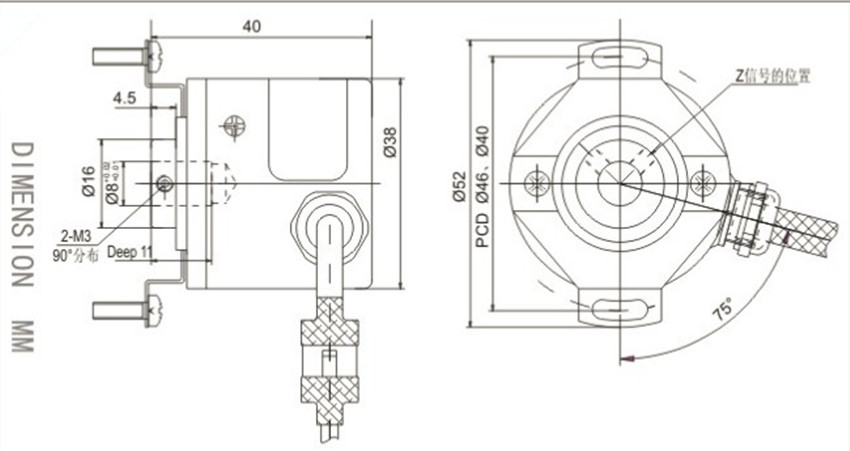

Body Dimensions (D x L) mm	40 x 38.40
Cable Length (m):	1.5
